Our Equipment

Rig 1 – Self Mobile & Top Drive

  • Hook load – 50,000 lbs
  • Range 3 casing (8 5/8-inch casing)
  • Depth – 300 meters
  • Mud Tanks – 3 tanks, 22m3 total capacity
  • Triplex Mud Pump – 1.3m3 per minute
  • 55KW light plant
  • Boiler – Saskatoon 60HP
  • Rig Manager Shack – wheeled trailer w/ crew bathroom
  • Loads – Summer 4 & Winter 5

Rig 2 – Self Mobile & Top Drive

  • Hook load – 60,000 lbs
  • Range 3 casing (8 5/8-inch casing)
  • Depth – 350 meters
  • Mud Tanks – 3 tanks, 22m3 total capacity
  • Triplex Mud Pump – 1.3m3 per minute
  • 55KW light plant
  • Boiler – Saskatoon 40HP
  • Rig Manager Shack – wheeled trailer w/ crew bathroom
  • Loads – Summer 4 & Winter 5

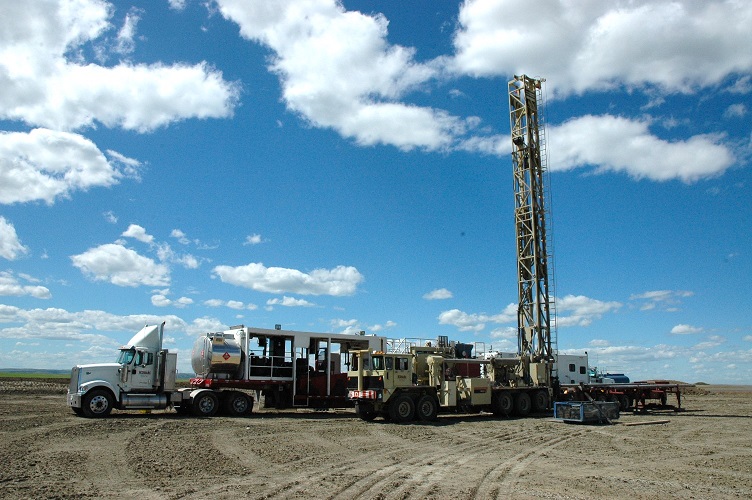

Rig 3 – Self Mobile Atlas Copco RD-20 & Top Drive

  • Hook load – 120,000 lbs
  • Range 3 casing (13 3/8-inch casing max length 13.5m)
  • Depth – 1,000 meters
  • Mud Tanks – 3 tanks, 30m3 total capacity
  • Triplex Mud Pump – 1.7m3 per minute
  • 75KW light plant
  • Boiler – Saskatoon 40HP
  • Rig Manager Shack – wheeled trailer w/ crew bathroom
  • Loads – Summer 5 & Winter 6

Rig 4 – Self Mobile Atlas Copco RD-20 & Top Drive

  • Hook load – 120,000 lbs
  • Range 3 casing (13 3/8-inch casing max length 13.5m)
  • Depth – 1,000 meters
  • Mud Tanks – 3 tanks, 33m3 total capacity
  • Triplex Mud Pump – 2.14m3 per minute
  • 105KW light plant
  • Boiler – Saskatoon 60HP
  • Rig Manager Shack – wheeled trailer w/ crew bathroom

    Loads – Summer 7 & Winter 8

Cementer 1 – Trailer Mounted

  • 8m3 cement batch mixer
  • Digital Density meter and Flowmeter with information storage capability and Bluetooth laptop communication
  • Centrifugal pump 1.5m3 per minute

Cementer 2 – Trailer Mounted

  • 10m3 cement batch mixer
  • Digital Density meter and Flowmeter with information storage capability and Bluetooth laptop communication
  • Positive Displacement Progressive Cavity pump 1.3m3per minute

Other Equipment

4 Cement Bulkers

2 x 30 tonne + 2 x 25 tonne

4 Water Trucks

2 x 16m3 tank + 2 x 20m3 tank

4 Vac Trucks

3 x 12m3 tank + 1 x 15m3 tank

4 Loaders

With pipe grapples, pallet forks and bucket
